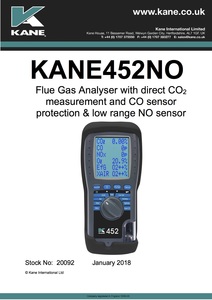

KANE452NO
- Select from pre-programmed fuels - gas, oil, biomass
- Dual pump system for CO sensor ‘over-range’ protection
- Low range NO sensor (0-100ppm)
- Structured commissioning test
- Fast print
- Screen protection
- 6 line display
- Factory fitted upgrades available
...the best just keeps getting better!
Features
- Structured commission test
- Rotary switch for ease of use
- Data hold
- Logs & prints reports with optional infra-red printer
- Combustion
- Pressure
- Let-by & Tightness
- Temperature
- CO build up
- Commission test
- 6 year warranty if serviced annually by Kane
Application
- Installation and servicing of domestic oil, gas or biomass appliances
- Safety checks
- CO in a room or around an appliance
- Combustion performance checks
- Combustion efficiency checks
- Flue Draught
Measures
- CO2 direct with an infra-red sensor 0-20%
- CO 0-2,000ppm
- NO 0-100ppm
- Differential temperature
- High accuracy differential pressure meter +/- 80mbar
Calculates
- O2
- Excess air
- CO/CO2 ratio
- Combustion efficiency
Fuel Types
- Natural Gas
- Butane
- Propane
- LPG
- 28 sec oil
- 35 sec oil
- Wood pellets
Box Contents
- Analyser
- Probe
- Pressure connectors
- Charger
- Quick guide reference
- Calibration report
Specification
| Temp Measurement | Range | Resolution | Accuracy |
|---|---|---|---|
| Flue Temperature | 0-600°C | 0.1°C | ±2.0°C ±0.3% reading |
| Inlet Temperature (Internal sensor) |
0-50°C | 0.1°C | ±1.0°C ±0.3% reading |
| Inlet Temperature (External sensor) |
0-600°C | 0.1°C | ±2.0°C ±0.3% reading |
| Flue Gas Measurement | Range | Resolution | Accuracy |
|---|---|---|---|
| Oxygen*2 | 0-21% | 0.1% | ±0.3% |
| Carbon Monoxide*1 | 0-20ppm 21-2,000ppm Above 3000ppm Purge pump operates |
1ppm | ±3ppm ±5% reading unspecified |
| Nitric Oxide (NO) | 0-100ppm Over range to 1500ppm |
1ppm | ±2ppm <30ppm*1 ±5ppm <100ppm*1 ±5% reading >100ppm |
| Carbon dioxide*1 | 0-20% | 0.1% | ±0.3% volume |
| Efficiency (Net or Gross)*2 | 0-99.9% | 0.1% | ±1.0% reading |
| Efficiency High (C)*2 | 0-119.9% | 0.1% | ±1.0% reading |
| Excess Air*2 | 0-250% | 0.1% | ±0.2% reading |
| CO/CO2 ratio*2 | 0-0.999 | 0.0001% | ±5% reading |
*1 Using dry gases at STP
*2 Calculated
| Pressure (differential) | Range | Resolution | Accuracy |
|---|---|---|---|
| Nominal range ±80mbar Maximum over range without damage to sensor is ±400mbar |
±0.2mbar ±1mbar ±80mbar |
Maximum 0.001mbar <25mbar |
±0.005mbar ±0.03mbar ±3% of reading |
| Pre-programmed Fuels | Natural gas Propane, Butane, LPG, Light Oils (28/35 sec), Wood Pellets, Town Gas, Coke Gas, Bio Oil, Bio Gas |
| User programmed Fuels | 5 user defined fuels |
| Storage Capacity | 60 Combustion tests 20 Pressure & Temperature tests 20 Tightness tests 20 Temperature tests 20 Room CO tests 20 Room CO tests 20 Commissioning tests |
Carbon Dioxide resolution is 0.01% below 1% measured value.
| Ambient Operating Range | 0°C to ±45°C 10% to 90% RH non-condensing |
| Battery Type / Life | 4AA cells >8 hours using Alkaline AA cells |
| Chargers (optional) | 100-240v charger, for NiMH batteries only 12v in vehicle charger, for NiMH batteries only |
| Dimensions | |
|---|---|
| Weight | 0.8kg handset with protective rubber cover |
| Handset | 200 x 45 x 90mm |
| Probe | 300mm long including handle 6mm diameter x 240mm long stainless steel shaft with 2m long neoprene hose. Type K thermocouple |
Kit Options
KANE452NO KIT
KANE IRP-2 Infra-red printer & backpack
KANE452NO OIL KIT
KANE IRP-2 Infra-red printer, KANEMSP manual smoke pump & oil pressure test kit in backpack.
