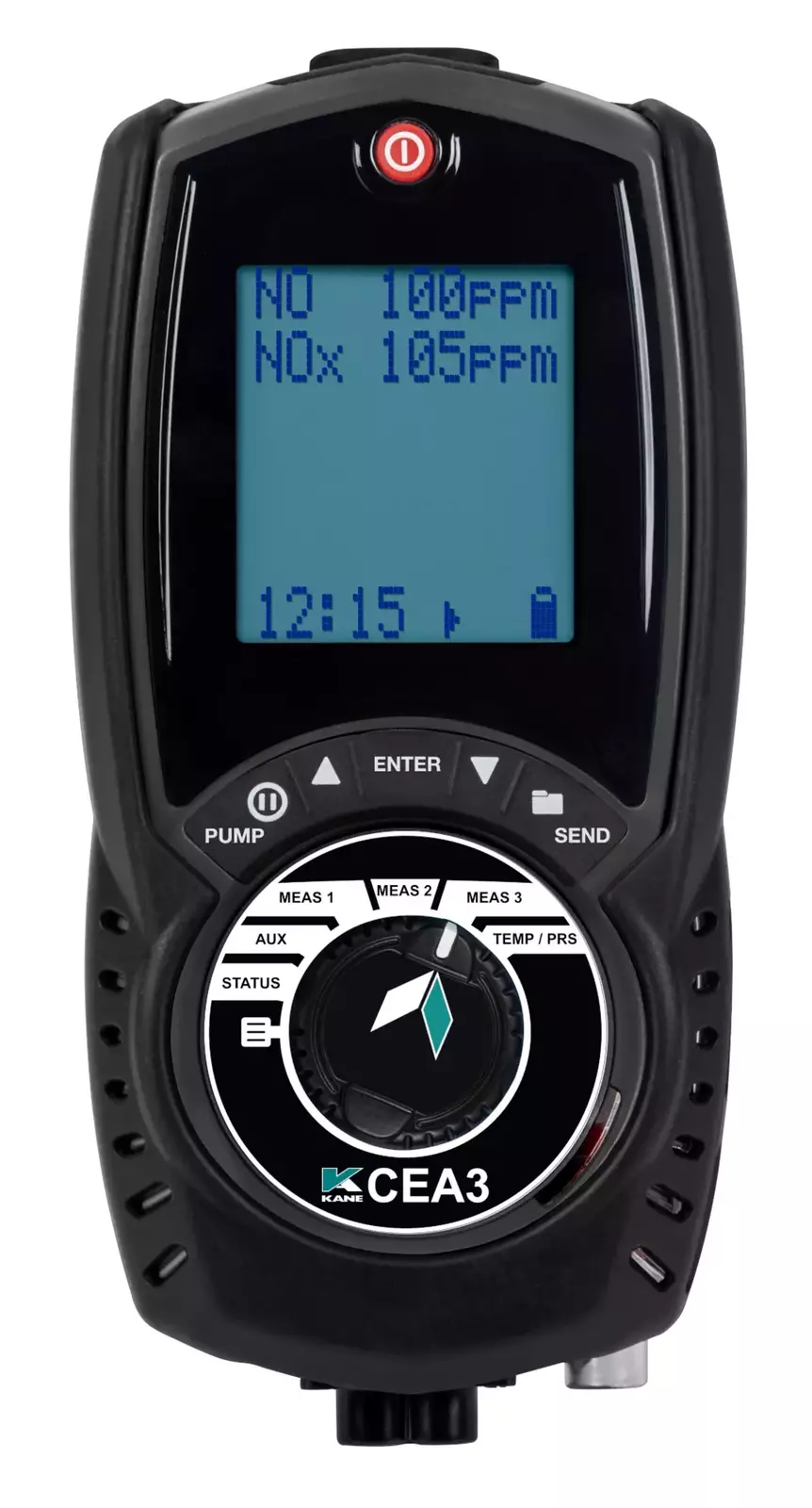

KANE-CEA3
Combustion Efficiency Analyser with CO and NO
KANE-CEA3
Combustion Efficiency Analyser with CO and NO
- Test boilers up to 5MW & 50mbar stack draught
- Save fuel, reduce pollution & increase efficiency
- Payback in months: 1% efficiency = 1% lower fuel bill
- Measure flue stack temp & CO2 in real time
- Calculate O2, combustion efficiency & excess air
- Print results to optional KANE-IRP3 printer
- Large display & easy to use rotary dial
- Long life NDIR CO2 sensor
- CO & NO
Independently tested by TUV SUD to EN50379 - Use for BS7967 & TB143
Features
- High capacity water trap & particle filter
- Unique long life NDIR CO2 sensor
- Real time measurements & calculations
- Large display & unique rotary dial
- KANE LIVE wireless module
- Rugged, battery powered go anywhere analyser
- View, hold, store & print test results to optional KANE-IRP3 printer
- Worklight
- Optional NO measurement to 600ppm
Options
- High temp & longer length probes
- KANE-IRP3 infra red printer
- UKAS calibration certificate
Measures
- CO2 to 20%
- Flue temperature to 600°C
- CO to 10,000pm with H2 compensation & over range protection
- NO to 600ppm - KANE-CEA3
- Pressure to 160mBar
Calculates
- O2, combustion efficiency & excess air
- Net temperature
- CO / CO2 ratio
- NOx - KANE-CEA3
Fuel Types
- Natural Gas, LPG & Biogas
- Propane & Butane
- Light & Heavy Oil
- Coke, Coal & Wood pellets

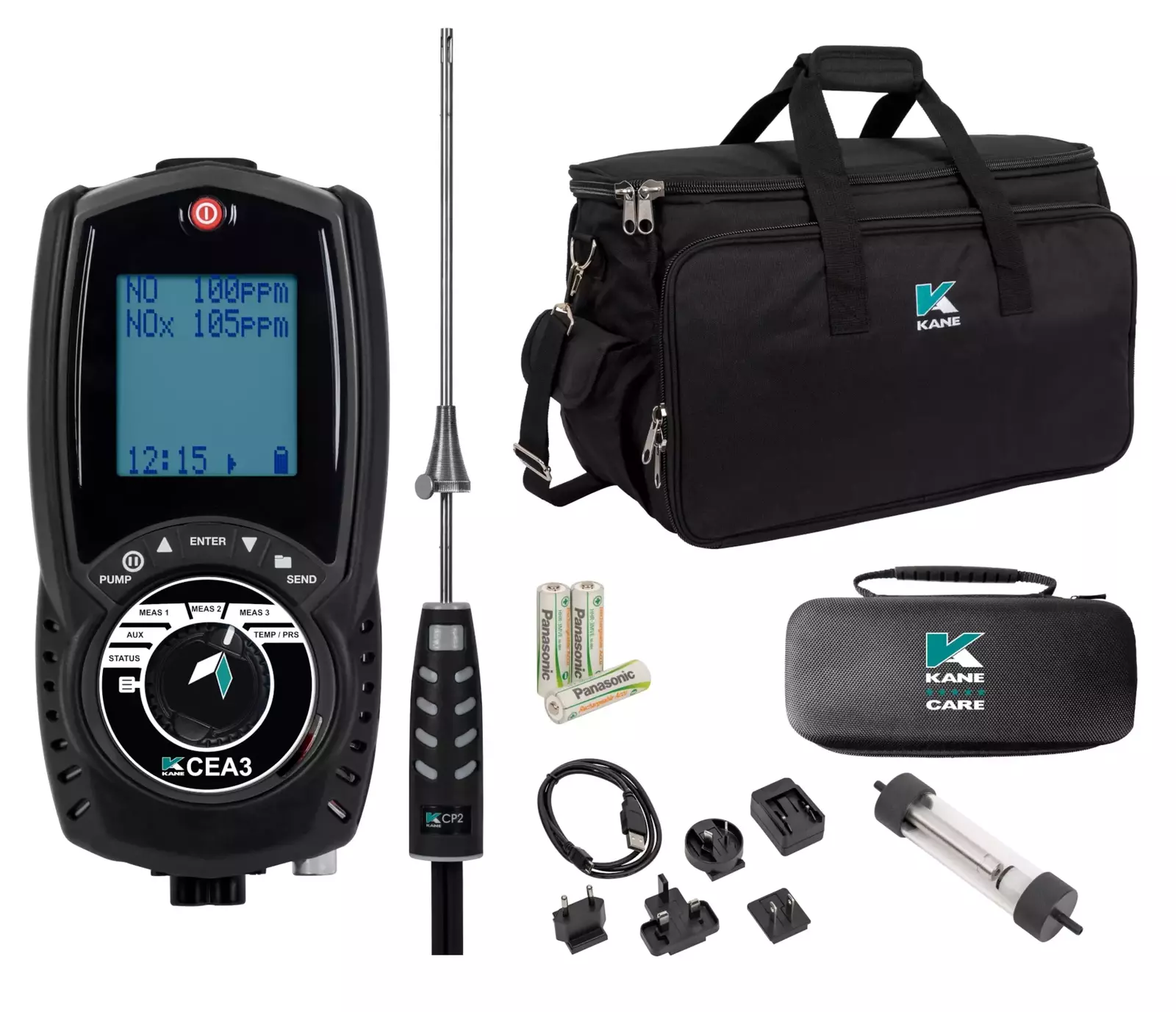

Box Contents
- Boiler Efficiency Analyser supplied with SM50056 high capacity water trap & filter, CP2 probe, 3 x AA rechargeable batteries, USB1 charger & MSC00237 protective pouch
