KANE457

S icon domestic
S icon oil
S icon wireless option
S icon commercial catering
S icon made in uk

Unique - ambient & flue CO2 in one analyser Ideal for commercial catering & incident investigations

Features

  • Rotary switch for ease of use
  • Logs & prints reports with optional infra-red printer
    • Combustion
    • Pressure
    • Let-by & Tightness
    • Temperature
    • CO & CO2 build up
    • Logs & prints ambient CO & CO2
  • 6 year warranty if serviced annually by Kane
KANE457

Applications

  • Installation, commissioning & servicing of domestic oil or gas appliances
  • Commercial Catering
  • Safety checks
    • CO in a room or around an appliance
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught
  • CMDDA1
  • Indoor Air Quality

Measures

  • CO2 direct with an infra-red sensor 0-20%
  • CO2 ppm 0-10,000ppm
  • CO 0-2,000ppm
  • Differential temperature
  • High accuracy differential pressure meter +/-80mbar

Calculates

  • O2
  • CO/CO2 ratio
  • Excess air
  • Combustion efficiency

Fuels Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 28 sec oil
  • 35 sec oil
  • Wood pellets

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • CO2 true zero capsule
  • Charger
  • Manual
  • Calibration report

Specification

Parameter Range Resolution Accuracy
Flue Temperature 0-600°C 0.1°C ±2.0°C
±0.3% reading
Inlet Temperature
(Internal Sensor)
0-50°C 0.1°C ±1.0°C
±0.3% reading
Inlet Temperature
(External Sensor)
0-600°C 0.1°C ±1.0°C
±0.3% reading
Inlet Temperature
(External Sensor)
0-600°C 0.1°C ±2.0°C
±0.3% reading
Oxygen*2 0-21% 0.1% ±0.3%*1
Carbon monoxide 0-20ppm
21-2000ppm nom
4,000ppm max for 15 mins
1ppm ±0.3%*1
±3ppm
±5% reading
Carbon dioxide 0-20% 0.1% ±0.3% reading
Efficiency (Net or Gross)*2 0-99.9% 0.1% ±1.0% reading
Effeciency High (C)*2 0-119.9% 0.1% ±1.0% reading
Excess Air*2 0-250% 0.1% ±0.2% reading
CO/CO2 ratio *2 0-0.999 0.0001 ±5% reading
Nominal range ±160mBar
Maximum over range without damage to sensor is ±800mBar
±0.2mBar
±1 mBar
±160mBar
Maximum
0.001 mBar
<25 mBar
±0.005 mBar
±0.03 mBar
±3% of reading
Pre-programmed Fuels Natural gas, Propane, Butanem LPG, Light Oils (28/35 sec), Wood Pellets
Ambient Measurements
Carbon Monoxide
As above
Carbon Dioxide 0 to 5000ppm 1ppm ±5% reading
5001 to 9999ppm 5ppm ±8%reading
Storage Capacity 99 Combustion tests
20 Pressure tests
20 Tightness tests
20 Temperature tests
20 Room CO tests
20 Ambient tests
up to 240 times tests (one sequence only)

*1 Using dry gases at STP
*2 Calculated

Ambient Operating Range Temperature - 0°C to 40°C
Humidity - 10% to 90% RH non-condensing
Atmospheric Pressure - 860 to 1060hPa
Battery Type / Life 4AA cells
>8 hours using Alkaline AA cells
Chargers (optional) 220v charger, for NiMH batteries only
12v in vehicle charger, for NiMH batteries only
Dimensions Weight - 0.8kg handset with protective cover
Handset - 200 x 45 x 90mm
Probe - 300mm long including handle. 6mm diameter x 240mm long stainless steel shaft with 3m neoprene hose. Type K thermocouple

Wireless Options

Optional wireless upgrade

  • Transfer analyser readings to your PC using a KANE LIVE software.
  • Send printout data to your mobile device using the free Kane printer app.
option.name

BTM/450

Wireless android module

option.name

BTM/450LE

Wireless iOS module

Kit Options

option.name

KIT

KANE IRP-2 Infra-red printer & carry bag

option.name

PRO KIT

As KIT plus GLD/450plus gas leak detector, KAL1 air liquid temperature probe, pressure hose & 2 x KPCP clamp-on pipe temperature probes and carry bag.

option.name

CPA1 KIT

As PRO KIT plus ASP2 appliance sampling probe kit, 12v in vehicle charger, in a large carry bag.

option.name

OIL KIT

KANE IRP-2 Infra-red printer, KANEMSP manual smoke pump & oil pressure test kit.

Accessories

Pipe Clam Probe
PRD1
14102-2 Soft case
17820 Carry Case
Battery Charger, 100-240V
GLD450 Plus
KAL1 Air Liquid Probe
KANE IRP-2 BLUE BOOT
KANE MSP
CPS1 Combustion Probe Stand

Consumables

PF400-5 Filters
TP5 Pack of 5 Thermal Paper Rolls
4 x 2,000 mAh rechargeable batteries

videos

1 - KANE457 Introduction

1 - KANE457 Introduction

2 - KANE457 Switch On

2 - KANE457 Switch On

3 - KANE457 Combustion Analysis

3 - KANE457 Combustion Analysis

4 - KANE457 Differential Pressure & Temperature

4 - KANE457 Differential Pressure & Temperature

5- KANE457 Ambient Air Testing

5- KANE457 Ambient Air Testing

How to change graphs - KANE LIVE

How to change graphs - KANE LIVE

How to change parameters - KANE LIVE

How to change parameters - KANE LIVE

How to change the header - KANE LIVE

How to change the header - KANE LIVE

How to change user details - KANE LIVE

How to change user details - KANE LIVE

How to change viewable readings - KANE LIVE

How to change viewable readings - KANE LIVE

How to connect supported bluetooth - KANE LIVE

How to connect supported bluetooth - KANE LIVE

How to download logs - KANE LIVE

How to download logs - KANE LIVE

How to pair and connect the KANE457 - KANE LIVE

How to pair and connect the KANE457 - KANE LIVE

How to save data - KANE LIVE

How to save data - KANE LIVE

How to use change the language - KANE LIVE

How to use change the language - KANE LIVE

How to use help - KANE LIVE

How to use help - KANE LIVE

How to use the pump functions - KANE LIVE

How to use the pump functions - KANE LIVE

KANE IRP-2 Changing the Printer Roll

KANE IRP-2 Changing the Printer Roll

Using the KANE Wireless Printer Android app

Using the KANE Wireless Printer Android app

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5 YEAR 6
£94 £94 £94 £94 £155 £94

Rolling warranty ends after 6 years & becomes limited to replaced parts (12 months)


Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Software

Install

KANE Wireless Printer - iPad App

Install

KANE Wireless Printer - iPhone App

Install

KANE Wireless Printer (Android app)

Install

KANE LIVE

Manuals

KANE457

KANE457

KANE457

Please register your analyser or sign in to download the manual.

Register Analyser

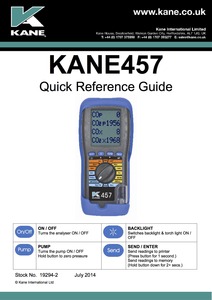

KANE457 Quick Reference Guide
