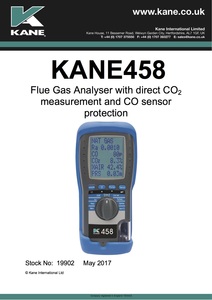

KANE458


KANE458

  • Dual pump system for CO sensor ‘over-range’ protection
  • Structured commissioning test
  • Fast print
  • Screen protection
  • 6 line display
  • Factory fitted upgrades available

...the best just keeps getting better!

Features

  • Structured commission test
  • Rotary switch for ease of use
  • Data hold
  • Logs & prints reports with optional infra-red printer
    • Combustion
    • Pressure
    • Let-by & Tightness
    • Temperature
    • CO build up
    • Commission test
  • 6 year warranty if serviced annually by Kane

Application

  • Installation and servicing of domestic oil or gas appliances
  • Safety checks
  • CO in a room or around an appliance
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • CO2 direct with an infra-red sensor 0-20%
  • CO 0-2,000ppm
  • Differential temperature
  • High accuracy differential pressure meter +/- 80mbar

Calculates

  • O2
  • Excess air
  • CO/CO2 ratio
  • Combustion efficiency

Fuel Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 28 sec oil
  • 35 sec oil
  • Wood pellets

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • Charger
  • Quick guide reference
  • Calibration report

Specifications

Temp Measurement Range Resolution Accuracy
Flue Temperature 0-600°C 0.1°C ±2.0°C
±0.3% reading
Inlet Temperature
(Internal sensor)
0-50°C 0.1°C ±1.0°C
±0.3% reading
Inlet Temperature
(External sensor)
0-600°C 0.1°C ±2.0°C
±0.3% reading
Flue Gas Measurement Range Resolution Accuracy
Oxygen*2 0-21% 0.1% ±0.3%
Carbon Monoxide*1 0-20ppm
21-2,000ppm
Above 2000ppm Purge pump operates
1ppm ±3ppm
±5% reading
unspecified
Carbon dioxide*1 0-20% 0.1% ±0.3% volume
Efficiency (Net or Gross)*2 0-99.9% 0.1% ±1.0% reading
Efficiency High (C)*2 0-119.9% 0.1% ±1.0% reading
Excess Air*2 0-250% 0.1% ±0.2% reading
CO/CO2 ratio*2 0-0.999 0.0001% ±5% reading

*1 Using dry gases at STP
*2 Calculated

Pressure (differential) Range Resolution Accuracy
Nominal range ±80mbar
Maximum over range without damage to sensor is ±400mbar
±0.2mbar
±1mbar
±80mbar
Maximum
0.001mbar
<25mbar
±0.005mbar
±0.03mbar
±3% of reading

Pre-programmed Fuels Natural gas Propane, Butane, LPG, Light Oils (28/35 sec), Wood Pellets, Town Gas, Coke Gas, Bio Oil, Bio Gas
User programmed Fuels 5 user defined fuels

Storage Capacity 60 Combustion tests
20 Pressure & Temperature tests
20 Tightness tests
20 Temperature tests
20 Room CO tests
20 Room CO tests
20 Commissioning tests

Carbon Dioxide resolution is 0.01% below 1% measured value.


Ambient Operating Range 0°C to ±45°C 10% to 90% RH non-condensing
Battery Type / Life 4AA cells
>8 hours using Alkaline AA cells
Chargers (optional) 100-240v charger, for NiMH batteries only
12v in vehicle charger, for NiMH batteries only
Dimensions
Weight 0.8kg handset with protective rubber cover
Handset 200 x 45 x 90mm
Probe 300mm long including handle
6mm diameter x 240mm long stainless steel shaft with 2m long neoprene hose. Type K thermocouple

Wireless Options

Optional wireless upgrade

  • Transfer analyser readings to your PC using a KANE LIVE software.
  • Send printout data to your mobile device using the free Kane printer app.
option.name

BTM/450

Wireless android module

option.name

BTM/450LE

Wireless iOS module

Kit Options

option.name

KANE458 KIT

KANE IRP-2 Infra-red printer & carry bag

option.name

KANE458 PRO KIT

As KIT plus GLD/450plus gas leak detector, KAL1 air liquid temperature probe, pressure hose & 2 x KPCP clamp-on pipe temperature probes and carry bag.

option.name

KANE458 CPA1 KIT

As PRO KIT plus ASP2 appliance sampling probe kit, 12v in vehicle charger, in a large carry bag.

option.name

KANE458EK

KANE IRP-2, KANE700 gas leak detector, KANE-NCV3 non-contact voltage tester, pressure hose, charger and backpack.

Videos

How to save data - KANE LIVE

How to save data - KANE LIVE

How to use help - KANE LIVE

How to use help - KANE LIVE

How to use the pump functions - KANE LIVE

How to use the pump functions - KANE LIVE

Using the KANE Wireless Printer Android app

Using the KANE Wireless Printer Android app

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5 YEAR 6
£89 £89 £89 £89 £150 £89

Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.
