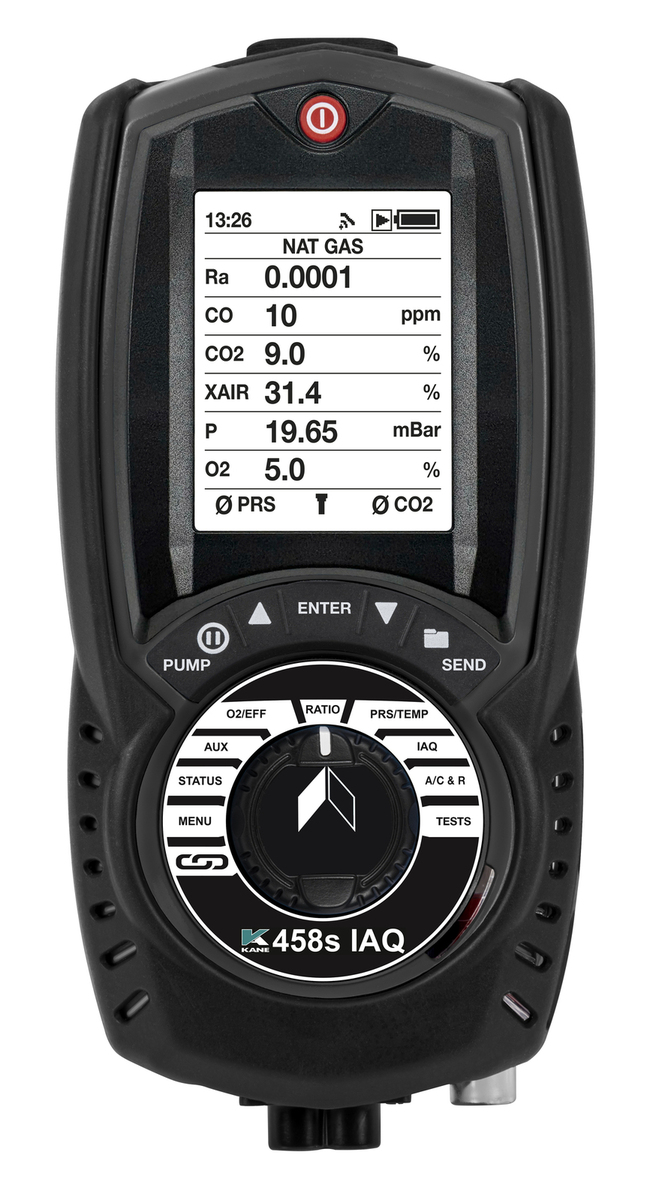

World 1st Heating & Cooling Analyser with NO option, KANE LINK & KANE CARE LIFETIME WARRANTY
As KANE458s HVACR plus:
- IAQ CO2 to 9999ppm
- Test appliances for CO & CO2
- Perform room tests for CO & CO2
- Commercial direct & flueless appliance CO & CO2 test
- Test kitchen appliances for CP42, CIS & BS8494
- Ventilation A/C & refrigeration with wireless smart ptobes
- EN50379 & EN5043 certified for O2, CO & 2 flue gas & IAQ
- Suitable for CMDDA1 & IGEM/GL/8 investigation, CCCN1 & COMCAT, COCN1 & CIGA1 or CGDA1, CORT1, CGFE1, CCP1 or I-GAS
- KANE CARE LIFETIME WARRANTY
- Connect to KANE LIVE app
- KANE LOCK - Stolen analyser automatically disabled
Features
- Structured tests as KANE458s plus:
- Room migration timed test for CO & CO2 with IAQ CO2 sensor
- Appliance timed sweep test for CO & CO2 with IAQ CO2 sensor
- Tests Type C sealed appliances, Type B boiler open flue & Type A cooker, space & water heaters
- A/C & Refrigeration tests with wireless probes - no manifold, hoses or leaks
- Data hold, log & print reports with user details to optional KANE-IRP3 printer
- Connect to KANE LIVE or 3rd party apps
- KANE CARE LIFETIME WARRANTY - We promise to never let you down or your money back
Measures
- O2 0-21%
- CO2 0-9999ppm
- CO 0-10,000ppm with H2 compensation
- H2 measurement
- NO 0-600ppm option
- Differential temperature -20 - +1350°C with suitable probes
- Differential pressure -80 - +80mBar
- Air flow 1.1 – 20m/s with KANE-DTHA2 option
- Temperature -20 - +50°C with KANE-DTHA2 option
- RH 0.1 – 99% with KANE-DTHA2 option
- Room CO 0-999ppm with KANE79 CO monitor option
Calculates
- CO2 flue gas
- CO / CO2 ratio
- Excess air
- Combustion efficiency
- NOx option
- A/C & Refrigeration superheat & subcoo
Fuel Types
- 12 standard fuels including: Natural Gas, LPG, Butane, Propane, Light Oil, Heavy Oil, plus 5 user fuels
- 40 refrigerants including: R22, R32, R134a, R290 & R410A
Box Contents
- Supplied with CP2 probe, 3 rechargeable batteries, USB1 charger & MSC00237 protective case & 14102/2 carry bag
- KANE458s IAQ options - As KANE358 + PRO KIT2, CPA KIT2, COM-CAT KIT, CMDDA KITS & HVACR KIT
- KANE-IRP3 Printer option
Specifications
| Power Supply : | 2 x AA alkaline batteries |
| Sensor : | Solid state semi conductor |
| Sensitivity : | < 50ppm methane |
| Indicators : | Audible : Variable tic rate Visual : Flashing multicoloured LEDs |
| Warm-up : | 20 seconds |
| Response Time : | < 1 second |
| Duty Cycle : | Continuous |
| Battery Life : | 5 hours typical use |
| Dimensions : | Handle = 190mm long Probe = 180mm long |
| Weight : | Approx. 100gm |
| Operational Range : | 0-40°C, 10% to 90% RH non-condensing |
Gases detected include:
| Acetone | Alcohol | Ammonia | Benzene | Butane | Ethylene | Gasoline |
| Petrol | Hydrogen | Industrial Solvents | Jet Fuel | Lacquer | Thinners | Methane |
| Naphtha | Natural Gas | Propane | Toluene |
Service Price
| YEAR 1-4 |
|---|
| £255 |
Calibration or Conformity Certificates included, as appropriate
All prices £ GBP, exclusive of VAT & subject to change.
All prices are in £ sterling and are exclusive of VAT.
