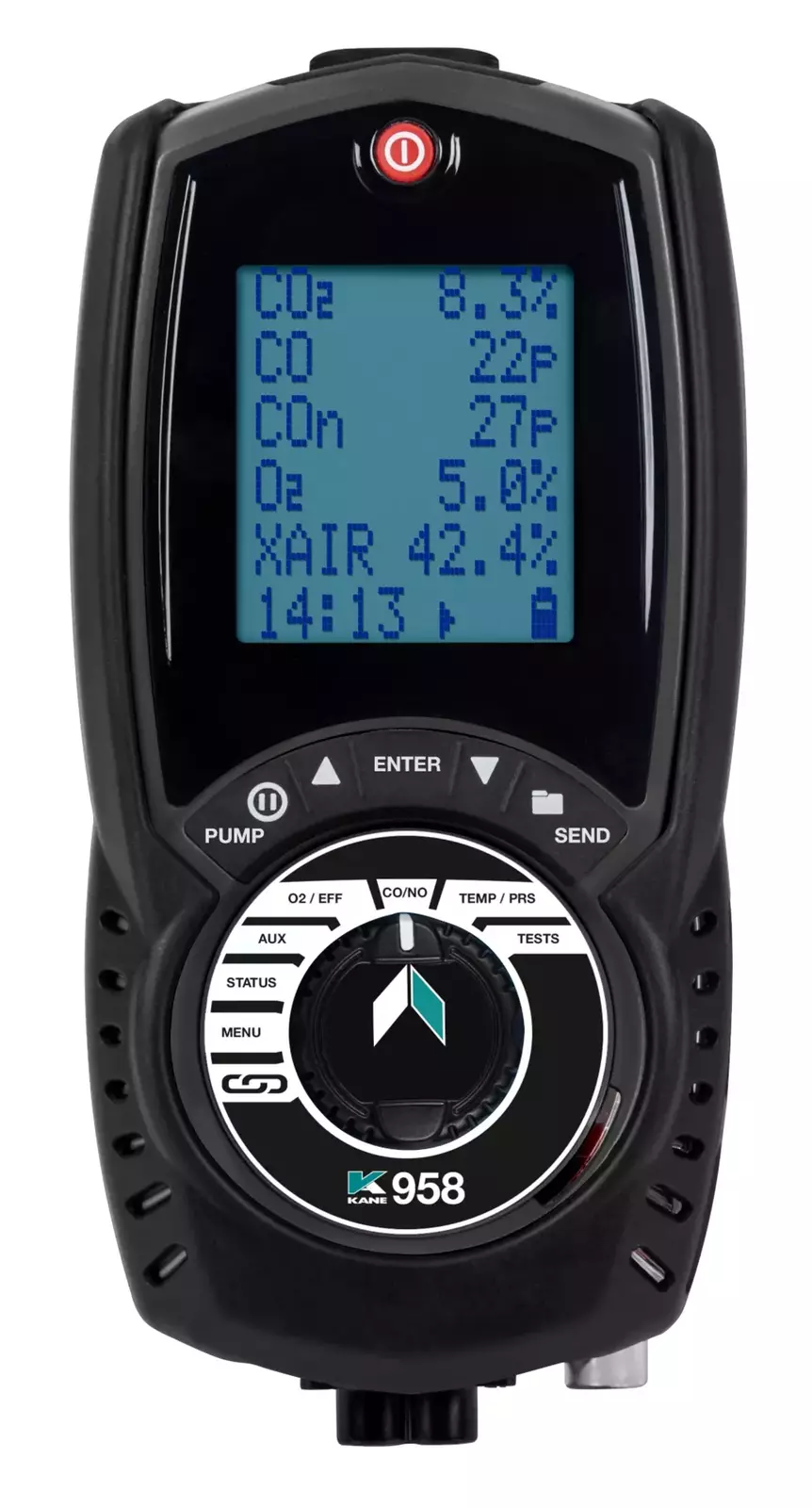

KANE958
Commercial Analyser
Commercial Boiler analyser with KANE LINK
- Tests boilers up to 5 MW
- Latest upgradeable sensor technology
- Easy to use rotary dial
- Purge pump protection prevents accidental damage to CO sensor
- Wireless as standard
- Wirelessly connect to optional KANE LINK enabled devices
- Hydrogen (H2) ready – up to 20% blend
- MCERTS (pending) compatible with optional KANE GCU Gas Chiller Unit
Features
- Rotary dial & 6 line display
- Data hold, log & print with user details to optional printer
- Combustion - Pressure - Temperature
- Worklight
- Backed by KANE CARE - We promise to never let you down or your money back
Applications
- Install & service domestic oil & gas appliances
- additional sensors to suit applications
- Commission & service industrial & marine boilers & engines
- Safety checks – CO in rooms or around appliances
- Combustion performance checks
- Combustion efficiency checks
- Flue Draught
Measures
- O2 0-21% ppm
- CO 0-10,000ppm H2compensated
- Differential temperature
- High accuracy differential pressure meter +/- 160mbar
- NO 0-5,000ppm (option)
- NO2 0-1,000ppm (option)
- High Range CO 0-10 % (option)
- SO2 0-5,000ppm (option)
Calculates
- CO2
- Excess air
- NOx (option)
- CO/CO2 ratio
- Combustion efficiency
Fuel Types
- Natural Gas
- LPG
- Coke
- Butane
- Light oil
- Propane
- Biogas
- Heavy oil
- Coal
- Wood pellets

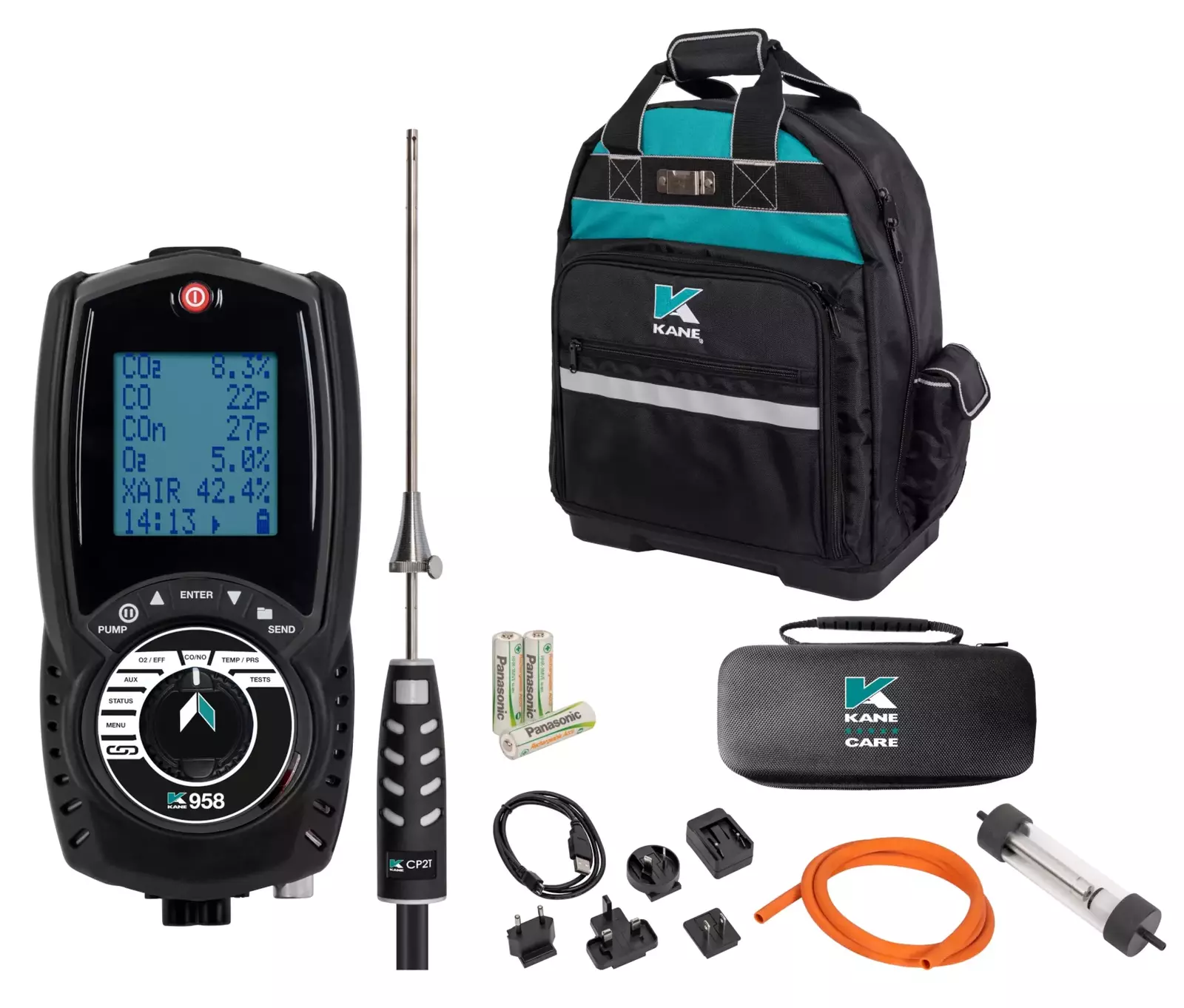

Box Contents
- Analyser
- Probe
- USB charger
- Quick reference guide & analyser calibration certificate
Service Price
| YEAR 1-4 | YEAR 5 | UKAS Certification |
|---|---|---|
| £195 | £295 | £205 |
All prices are in £ sterling and are exclusive of VAT.
