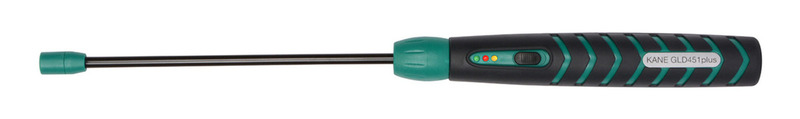

GLD451plus


GLD451plus

Gas leak detector with flexible shaft (nominal 250ppm methane detection limit).

Features

  • Power Supply: 2 x AA alkaline batteries

  • Sensor: Solid state semi¬≠conductor

  • Sensitivity: <250ppm methane

  • Indicators: Audible: Variable tic rate

  • Visual: Flashing multicoloured LEDs

  • Warm up: 20 seconds

  • Response Time: < 1 second

  • Duty cycle: Continuous

  • Battery Life: 5 hours typical use

  • Dimensions:

    • Handle = 190mm long
    • Probe = 180mm long
    • Weight: Approx. 100gm
  • Operational Range: 0-¬≠40°C, 10% to 90% RH non-condensing

  • Gases detected include:

    • Acetone / Alcohol / Ammonia / Benzene / Butane / Ethylene / Gasoline / Petrol / Hydrogen / Industrial Solvents / Jet Fuel / Lacquer / Thinners / Methane / Naphtha / Natural Gas / Propane / Toluene

Specification

Specifications
Power Supply: 2 x AA alkaline batteries
Sensor: Solid state semi conductor
Sensitivity: ~250ppm methane
Indicators: Audible: Variable tic rate
Visual Flashing multicoloured LEDs
Warm-up: 20 seconds
Response Time: <1 second
Duty Cycle: Continuous
Battery Life: 5 hours typical usage
Dimensions: Handle = 190mm long
Probe = 180mm long
Weight: Approx. 100gm
Operational Range: 0-40°C , 10% to 90% RH non-condensing
Acetone Alcohol Ammonia Benzene Butane Ethylene Gasoline
Petrol Hydrogen Industrial Solvents Jet Fuel Lacquer Thinners Methane
Naphtha Natural Gas Propane Toluene

Videos

05 KANE425/455 Gas leak detection

05 KANE425/455 Gas leak detection

Manuals

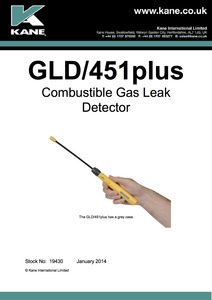

GLD451plus - English
