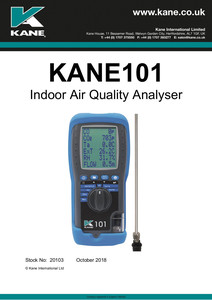

KANE101


KANE101

...the best just keeps getting better!

Features

  • Room air quality & flow measurement
    • ideal for commercial catering kitchens
  • Temperature & relative humidity measurement
  • Timed log 1-24 hours
  • Fast print
  • Designed for use with CIS23 & BS8494
  • 6 line display with screen protection
  • Factory fitted upgrades available

Application

  • Measures & logs ambient carbon monoxide (CO) & carbon dioxide (CO2)
  • Checks that flueless gas appliances including space heaters, water heaters & kitchen equipment are operating safely
  • Test CO & CO2 for indoor air quality (IAQ) checks
  • Monitoring air flow around air conditioning units & kitchen extractor fans

Measures

  • Ambient CO 0-1,000ppm
  • Ambient CO2 200-4,000ppm
  • Probe temperature -20° 200-4,000ppm
  • Probe temperature -20° to +60°
  • Probe humidity 10 to 95% RH
  • Probe air flow 0.3-30m/s

Box Contents

  • Analyser
  • Probe
  • Charger
  • Manual
  • Calibration report

Specifications

Gas Measurement:

Parameter Resolution Accuracy*1 Specified Range Over Range
Carbon Monoxide 1 ppm +/-3 ppm < 20 ppm
+/-5 ppm < 100 ppm
+/-5% > 100 ppm
+/-10% > 1000 ppm
1000 ppm 2000 ppm
Carbon Dioxide 1 ppm +/-25 ppm < 500 ppm
+/-5% < 5000 ppm
+/-10% > 5000 ppm
0 to 5000 ppm 9999 ppm

OPTIONS:

Parameter Resolution Accuracy*1 Specified Range Over Range
Ozone 0.01 ppm +/- 0.1 ppm 2 ppm 5 ppm
Probe temp 0.1 °C +/- 1°C -20°C to +60°C
Probe humidity 0.1% +/-5% abs 10 to 95% RH
Probe airflow 0.1m/s +/- 1 m/s 0.3 to 30 m/s

*1 Using dry gases at STP with the instrument not subjected to sudden changes of temperature, position or severe vibration


Dimensions
Weight
Handset
1kg / 2.2lb
200mm / 7.9” x 45mm / 1.8” x 90mm / 3.5”
Ambient Operating Range +0°C to +45°C / 32-104°F
10% to 90% RH non- condensing
Battery Life 6 hours from full charge and with pump on
Battery Charger (standard type trickle charger) Input: 100 - 240 V ac 50 - 60 Hz
Output: 12V dc. @ 800 mA. Max.

Wireless Options

Optional wireless upgrade

  • Transfer analyser readings to your PC using a KANE LIVE software.
  • Send printout data to your mobile device using the free Kane printer app.
option.name

BTM/450

Wireless android module

option.name

BTM/450LE

Wireless iOS module

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5
£125 £125 £125 £125 £185

Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Software

Install

KANE Live (Android app)

Install

KANE Wireless Printer - iPhone App

Install

KANE Wireless Printer - iPad App

Manuals

KANE101 - English.pdf

KANE101 - English.pdf

KANE101 - English.pdf

Please register your analyser or sign in to download the manual.

Register Analyser
