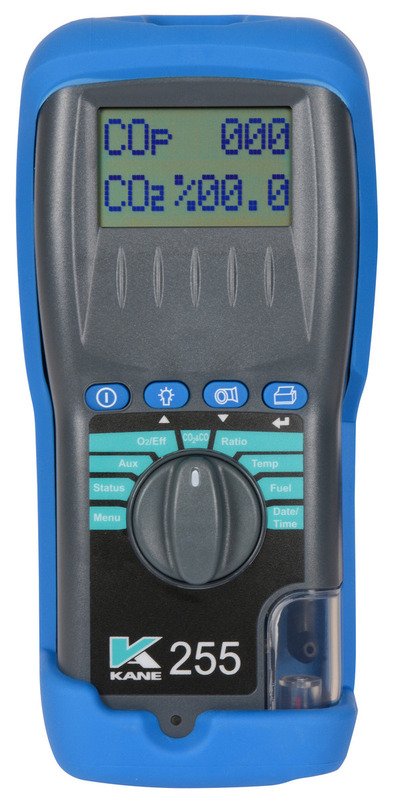

KANE255

S icon domestic
S icon oil

OFTEC & HETAS Engineers favourite analyser

Features

  • Rotary switch for ease of use
  • Infra-red output to the optional printer
  • Data hold
  • Internal memory
  • Long life sensors
  • 6 year warranty if serviced annually by Kane
KANE255

Application

  • Installation, commissioning & service of domestic, oil or gas boilers
  • Safety checks
    • CO in a room or around an appliance
  • Combustion performance checks
  • Combustion efficiency checks
  • Commissioning & servicing

Measures

  • CO 0-2,000ppm
  • CO 0-20%
  • Temperature
    • Flue 0-600°C

Calculates

  • O2
  • CO/CO2 ratio
  • Combustion efficiency

Fuel Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 28 sec oil
  • 35 sec oil
  • Wood pellets

Box Contents

  • Analyser
  • Probe
  • Charger
  • Manual
  • Calibration report

Specification

Parameter Range Resolution Accuracy
Temp Measurment
Flue Temperature 0-600°C 0.1°C ±2°C
±0.3% reading
Inlet Temperature
(Internal Sensor)
0-50°C 0.1°C ±1°C
±0.3% reading
Inlet Temperature
(External Sensor)
0-600°C 0.1°C ±2°C
±0.3% reading
Flue Gas Measurement
Oxygen*2 0.21% 0.1% ±0.3%
Carbon Monoxide 0-60ppm
61-2,000ppm nom
4,000ppm max for 15 mins
1ppm ±3ppm
±5% of reading
Carbon Dioxide*1 0-20% 0.1% ±0.3% volume
Efficiency (Net or Gross)*2 0-99.9% 0.1% ±1.0% reading
Efficiency High (C)*2 0-119.9% 0.1% ±1.0% reading
Excess Air*2 0-250% 0.1% ±0.2% reading
CO/CO2 ratio*2 0-0.999 0.0001 ±5% reading

*1 Using dry gases at STP
*2 Calculated


Pre-programme fuels Natural gas, Light Oil, Propane, Butane, LPG, Wood Pellets.
Dimensions
Weight 1kg / 2.2lb
Handset 200mm / 7.9" x 45mm / 1.8" x 90mm / 3.5"
Probe L300mm / 11.8" x Dia 6mm / 0.25" with 200mm / 7.8" long stainless steel shaft, type K thermocouple and 3m / 6ft long neoprene hose
Ambient Operating Range ±0°C to ±40°C / 32-104°F
10% to 90% RH non-condensing
Storage Capacity 20 sets of test results in volatile memory
Battery Life 4AA cells
> 8 hours using Alkaline AA cells
Charger (optional) 110Vac/220 Vac nominal for NMiH batteries only
12V in vehicle charger for NMiH batteries only

Kit Options

option.name

KIT

KANE IRP-2 Infra-red printer & carry bag

option.name

PRO KIT

As KIT plus GLD/450plus gas leak detector, KAL1 air liquid temperature probe, pressure hose & 2 x KPCP clamp-on pipe temperature probes and carry bag.

option.name

CPA1 KIT

As PRO KIT plus ASP2 appliance sampling probe kit, 12v in vehicle charger, in a large carry bag.

option.name

OIL KIT

KANE IRP-2 Infra-red printer, KANEMSP manual smoke pump & oil pressure test kit.

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5 YEAR 6
£80 £80 £80 £80 £141 £80

Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Manuals

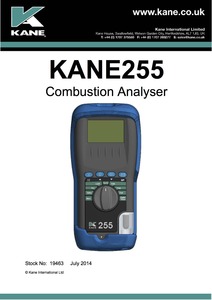

KANE255 Manual - English

KANE255 Manual - English

KANE255 Manual - English

Please register your analyser or sign in to download the manual.

Register Analyser

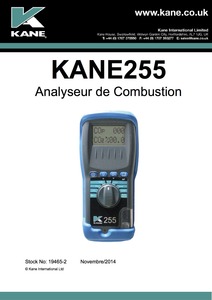

KANE255 Manual - French
