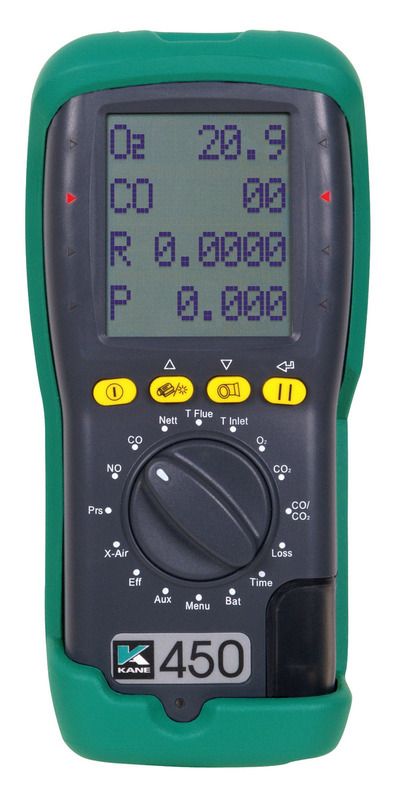

KANE450

S icon domestic
S icon commercial
S icon biomass
S icon oil
S icon sensor option
S icon made in uk

Oxygen measuring commercial analyser with a H2 compensated CO sensor

Features

  • Rotary switch for ease of use
  • Logs & prints reports with optional infra-red printer
    • Combustion
    • Pressure
    • Let-by & Tightness
    • Temperature
    • CO build up
  • 6 year warranty if serviced annually by Kane
KANE450

Applications

  • Installation, commissioning & servicing of domestic / commercial oil, gas biomass appliances
  • Safety checks
    • CO in a room or around an appliance
    • Combustion performance checks
    • Combustion efficiency checks
    • Flue Draught

Measures

  • CO - H2 compensated CO sensor is accurate to 4,000ppm
  • O2 0-21%
  • NO (High/Low optional upgrade)
  • High accuracy differential pressure
  • Differential temperature

Calculates

  • CO2
  • CO/CO2 ratio
  • NOx (optional)
  • Excess air
  • Combustion efficiency

Fuels Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 28 sec oil
  • 35 sec oil
  • Wood pellets

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • Charger
  • Manual
  • Calibration report

Sensor Upgrades

option.name

NO Sensor

NO Sensor ideal for biomass appliances

Sensor spec
Accuracy + 2 ppm gt 30 ppm
+5 ppm < 100 ppm
+5% of reading > 100ppm
Range 0-100 ppm

Kit Options

option.name

KIT

KANE IRP-2 Infra-red printer & carry bag

option.name

PRO KIT

As KIT plus GLD/450plus gas leak detector, KAL1 air liquid temperature probe, pressure hose & 2 x KPCP clamp-on pipe temperature probes and carry bag.

option.name

CPA1 KIT

As PRO KIT plus ASP2 appliance sampling probe kit, 12v in vehicle charger, in a large carry bag.

option.name

OIL KIT

KANE IRP-2 Infra-red printer, KANEMSP manual smoke pump & oil pressure test kit.

Accessories

KANE MSP
12 Volt Charger

Consumables

PF400-5 Filters
4 x 2,000 mAh rechargeable batteries

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5 YEAR 6
£84 £195 £84 £195 £84 £195

Rolling warranty ends after 6 years & becomes limited to replaced parts (12 months)


Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Manuals

KANE450

KANE450

KANE450

Please register your analyser or sign in to download the manual.

Register Analyser

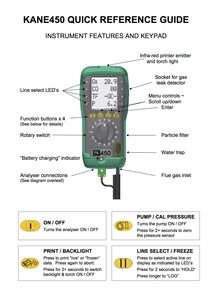

KANE450 Quick reference guide

KANE450 Quick reference guide

KANE450 Quick reference guide

Please register your analyser or sign in to download the manual.

Register Analyser
