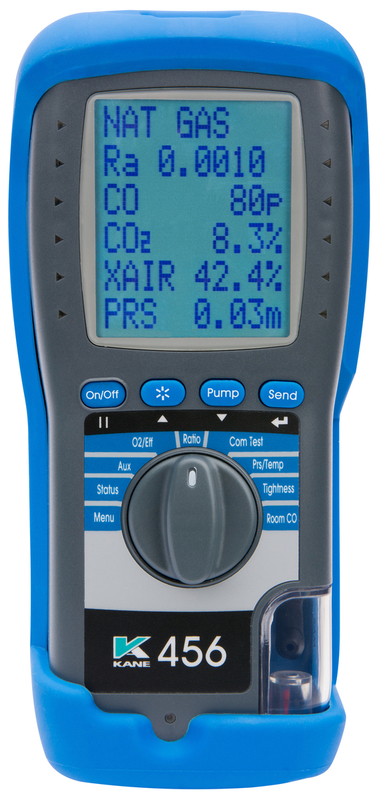

KANE456

S icon domestic
S icon oil
S icon wireless option
S icon made in uk

All the great features of KANE455 with...

  • Structured commissioning test
  • Variable countdown time 90, 60, or 30 seconds
  • Fast print
  • Screen protection
  • 2 dec point resolution on CO2
  • 6 line display

...the best just got better!

Features

  • Structured commission test
  • Rotary switch for ease of use
  • Data hold
  • Logs & prints reports with optional infra-red printer
    • Combustion
    • Pressure
    • Let-by & Tightness
    • Temperature
    • CO build up
    • Commission test
  • 6 year warranty if serviced annually by Kane
KANE456

Applications

  • Installation and servicing of domestic oil or gas appliances
  • Safety checks
  • CO in a room or around an appliance
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • CO2 direct with an infra-red sensor 0-20%
  • CO 0-2,000ppm
  • Differential temperature
  • High accuracy differential pressure meter +/- 80mbar

Calculates

  • O2
  • Excess air
  • CO/CO2 ratio
  • Combustion efficiency

Fuels Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 28 sec oil
  • 35 sec oil
  • Wood pellets

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • Charger
  • Manual
  • Calibration report

Wireless Options

Optional wireless upgrade

  • Transfer analyser readings to your PC using a KANE LIVE software.
  • Send printout data to your mobile device using the free Kane printer app.
option.name

BTM/450

Wireless android module

option.name

BTM/450LE

Wireless iOS module

Kit Options

option.name

KIT

KANE IRP-2 Infra-red printer & carry bag

option.name

PRO KIT

As KIT plus GLD/450plus gas leak detector, KAL1 air liquid temperature probe, pressure hose & 2 x KPCP clamp-on pipe temperature probes and carry bag.

option.name

CPA1 KIT

As PRO KIT plus ASP2 appliance sampling probe kit, 12v in vehicle charger, in a large carry bag.

option.name

OIL KIT

KANE IRP-2 Infra-red printer, KANEMSP manual smoke pump & oil pressure test kit.

Accessories

KANE MSP
14102-2 Soft case
17820 Carry Case
12 Volt Charger
Pipe Clam Probe
PRD1
KANE IRP-2 BLUE BOOT
Appliance Sampling Probe Kit - 3 Probes with Handle/Hose Assembly
Battery Charger, 100-240V
GLD450 Plus
KAL1 Air Liquid Probe

Consumables

TP5 Pack of 5 Thermal Paper Rolls
PF400-5 Filters
4 x 2,000 mAh rechargeable batteries

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5 YEAR 6
£89 £89 £89 £89 £150 £89

Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Software

Install

USB Serial Driver (Microchip)

Install

KANE Wireless Printer - iPhone App

Install

KANE Wireless Printer (Android app)

Install

KANE LIVE

Manuals

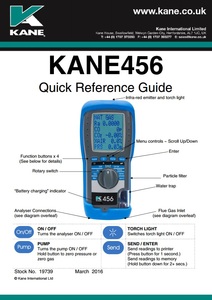

KANE456 Quick reference guide

KANE456 Quick reference guide

KANE456 Quick reference guide

Hi. Please register your analyser to download the manual.

Register Analyser
KANE456 Manual

KANE456 Manual

KANE456 Manual

Hi. Please register your analyser to download the manual.

Register Analyser
KANE IRP-2

KANE IRP-2

KANE IRP-2

Hi. Please register your analyser to download the manual.

Register Analyser
