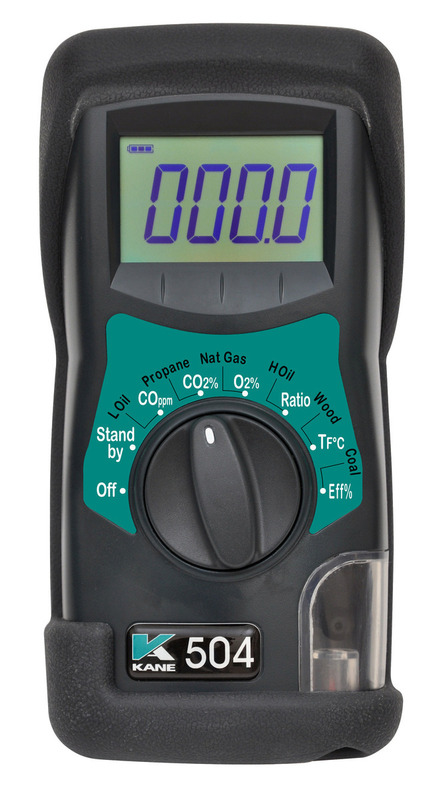

KANE504


KANE504

Compact analyser - ideal for the occasional user

Features

  • Rotary switch for ease of use
  • Long life sensors
  • Fitted with protective rubber sleeve with integral magnet
    -· 6 year warranty if serviced annually by Kane

Application

  • Installation, commissioning & servicing of domestic oil or gas appliances
  • Combustion performance checks
  • Combustion efficiency checks
  • Testing heating appliances for carbon dioxide (CO2), carbon monoxide (CO), Flue Temperature & Combustion Efficiency

Measures

  • Long life sensors measure CO2 direct 0-20%
  • CO 0-2,000ppm
  • Temperature

Calculates

  • O2
  • CO/CO2 ratio
  • Combustion efficiency

Fuel Types

  • Natural Gas
  • Propane
  • LPG
  • Light Oil
  • Heavy Oil
  • Wood
  • Coal

Box Contents

  • Analyser
  • Probe
  • 4 x AA batteries
  • Manual
  • Calibration report

Specification

Parameter Resolution Accuracy Range
Flue Temperature 0.1 °C ± 2°C + 0.3% Reading 0-600°C
Carbon Dioxide*1 0.1% ±0.2% 0 - 21%
Oxygen*2 0.1% ±0.2% 0 - 21%
Carbon Monoxide*1 1 ppm +/- 5ppm <100 ppm
+/-5% of reading >100ppm
0 to 1999 ppm
Efficiency*3 0.1% n/a 0-110%

Dimensions (approximate) Weight Handset Probe 0.5 Kg
180mm x 85mm x 50mm
250mm x 6mm stainless steel shaft
nominal 0.9m neoprene hose.
Ambient Operating Range +0°C to 45°C
10% to 90% RH non- condensing
850 to 1100 mbar atmospheric pressure
Battery Life 4 AA cells
>8 hours using Alkaline AA cells

*1 Using dry gases at STP
*2 Calculated assuming Fuel Lean Combustion for.
*3 Calculated

Service Price

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5 YEAR 6
£65 £65 £65 £65 £115 £65

Rolling warranty ends after 6 years & becomes limited to replaced parts (12 months)


Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Manuals

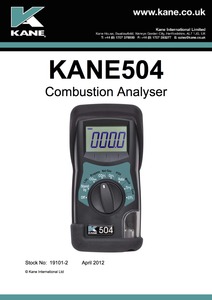

KANE504 Manual UK

KANE504 Manual UK

KANE504 Manual UK

Please register your analyser or sign in to download the manual.

Register Analyser

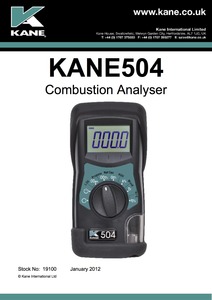

KANE504 Manual ROW

KANE504 Manual ROW

KANE504 Manual ROW

Please register your analyser or sign in to download the manual.

Register Analyser

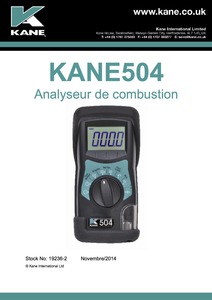

KANE504 Manual FR
