Upgradeable commercial analyser

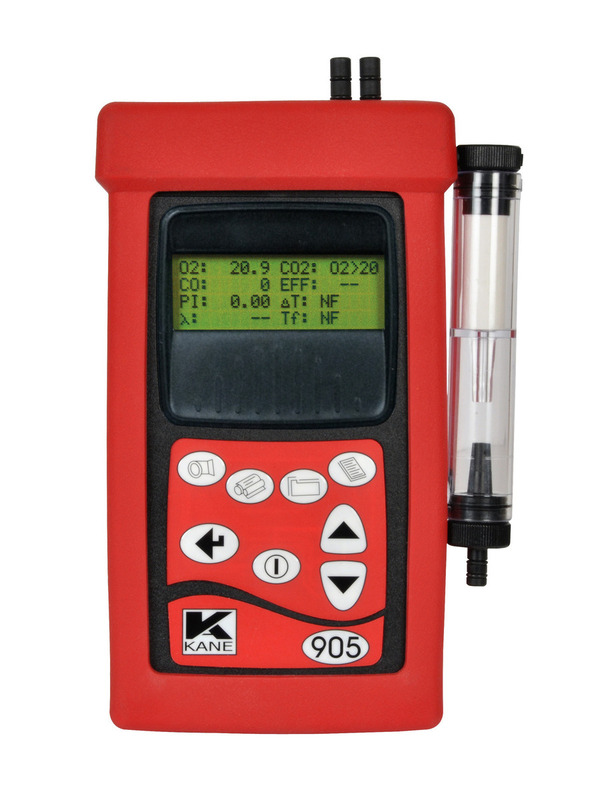

KANE905

Application

  • Installation, commissioning & servicing of commercial oil, gas or biomass appliances
  • Safety checks
  • CO in a room or around an appliance
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • O2 0-21%
  • CO 0-4,000ppm (hydrogen compensated)
  • Differential pressure
  • Temperature - inlet / flue gas / differential
  • *CO 0-100,000ppm
  • *NO 0-100ppm
  • *NO 0-5,000ppm
  • *O2 0-1,000ppm
  • *SO2 0-100ppm
  • *SO2 0-5,000ppm

Calculates

  • CO2
  • CO/CO2 ratio
  • Excess air
  • Combustion efficiency
  • *NOx (if NO sensor fitted)

Fuel Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 35 sec oil
  • Heavy oil
  • Solid fuel
  • User fuel
  • 28 sec oil

Box Contents

  • Analyser
  • Probe
  • Charger
  • Manual
  • Calibration report & carry case

Sensor Upgrades

KANE905 & KANE945 SO2 sensor (0-5,000ppm)

KANE905 & KANE945 NO sensor (0-5,000ppm)

KANE905 &KANE945 Low range NO sensor (0-100ppm)

KANE905 & KANE945 NO2 sensor (0-1,000ppm)

KANE905 & Kane954 High Range CO sensor (0-10%)

Wireless Options

Optional wireless upgrade

  • Transfer analyser readings to your PC using a KANE LIVE software.
  • Send printout data to your mobile device using the free Kane printer app.
option.name

BTM/450

Wireless android module

Videos

How to change graphs - KANE LIVE

How to change graphs - KANE LIVE

How to change parameters - KANE LIVE

How to change parameters - KANE LIVE

How to change the header - KANE LIVE

How to change the header - KANE LIVE

How to change user details - KANE LIVE

How to change user details - KANE LIVE

How to change viewable readings - KANE LIVE

How to change viewable readings - KANE LIVE

How to connect supported bluetooth - KANE LIVE

How to connect supported bluetooth - KANE LIVE

How to download logs - KANE LIVE

How to download logs - KANE LIVE

How to save data - KANE LIVE

How to save data - KANE LIVE

How to use change the language - KANE LIVE

How to use change the language - KANE LIVE

How to use help - KANE LIVE

How to use help - KANE LIVE

How to use the pump functions - KANE LIVE

How to use the pump functions - KANE LIVE

Service Price

CO Only

YEAR 1 YEAR 2 YEAR 3 YEAR 4 YEAR 5 YEAR 6
£105 £255 £105 £255 £105 £255
& £35 per extra sensor & £99 per extra sensor & £35 per extra sensor & £99 per extra sensor & £35 per extra sensor & £99 per extra sensor

Calibration or Conformity Certificates are included in all prices, as appropriate

All prices are in £ sterling and are exclusive of VAT.

Software

Install

KANE Wireless Printer (Android app)

Install

KANE LIVE

Install

KANE Live (Android app)

Manuals

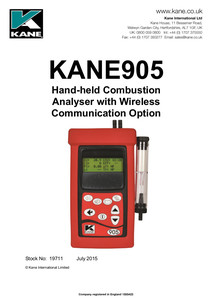

KANE905 - Manual English

KANE905 - Manual English

KANE905 - Manual English

Please register your analyser or sign in to download the manual.

Register Analyser
