KANE945

S icon commercial
S icon oil
S icon sensor option
S icon wireless option
S icon industrial
S icon made in uk

Upgradeable industrial emissions analyser with heavy duty pump

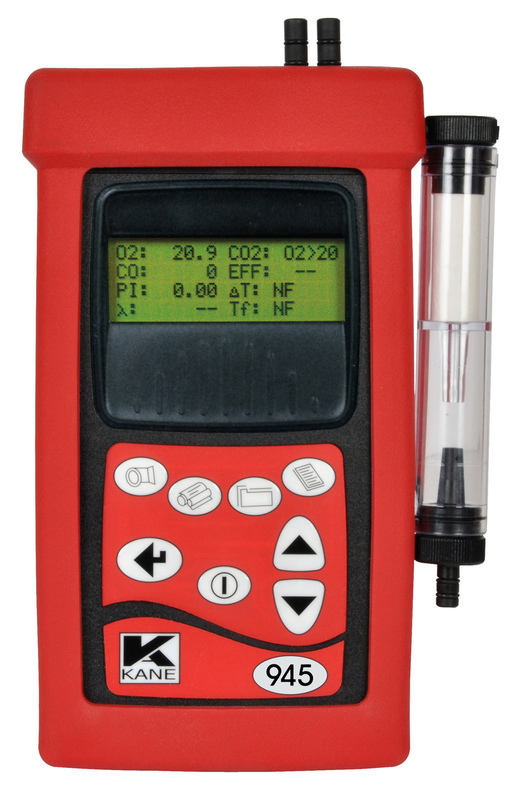

KANE945

Application

  • Installation, commissioning & servicing of industrial/commercial oil, gas or biomass appliances
  • Safety checks
    • CO in a room or around an appliance
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • O2 0-21%
  • CO 0-4,000ppm (hydrogen compensated)
  • Differential pressure
  • Temperature - inlet / flue gas / differential
  • * CO 0-100,000ppm
  • * NO 0-100ppm
  • * NO 0-5,000ppm
  • * NO2 0-1,000ppm
  • * SO2 0-100ppm
  • * SO2 0-5,000ppm
  • * Choose up to 2 additional sensors

Calculates

  • CO2
  • CO/CO2 ratio
  • Excess air
  • Combustion efficiency
  • * NOx (if NO sensor fitted)

Fuel Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 28 sec oil
  • 35 sec oil
  • Heavy oil
  • Solid fuel
  • User fuel

Box Contents

  • Analyser
  • Probe
  • Charger
  • Manual
  • Calibration report & carry case

Sensor Upgrades

KANE905 & KANE945 SO2 sensor (0-5,000ppm)

KANE905 & KANE945 NO sensor (0-5,000ppm)

KANE905 &KANE945 Low range NO sensor (0-100ppm)

KANE905 & KANE945 NO2 sensor (0-1,000ppm)

KANE905 & Kane954 High Range CO sensor (0-10%)

Wireless Options

Optional wireless upgrade

  • Transfer analyser readings to your PC using a KANE LIVE software.
  • Send printout data to your mobile device using the free Kane printer app.
option.name

BTM/450

Wireless android module

Videos

How to save data - KANE LIVE

How to save data - KANE LIVE

Software

Install

KANE Wireless Printer (Android app)

Install

KANE LIVE

Install

KANE Live (Android app)

Manuals

KANE945

KANE945

KANE945

Please register your analyser or sign in to download the manual.

Register Analyser
